Question Pool -- Category E5H

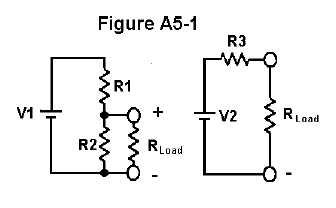

In Figure A5-1, what values of V2 and R3 result in the same voltage
and current as when V1 is 10 volts, R1 is 10 kilohms, and R2 is 20
kilohms?
-
A.
- R3 = 6.67 kilohms and V2 = 6.67 volts
-
B.
- R3 = 6.67 kilohms and V2 = 10 volts
-
C.
- R3 = 30 kilohms and V2 = 6.67 volts
-
D.
- R3 = 30 kilohms and V2 = 10 volts
