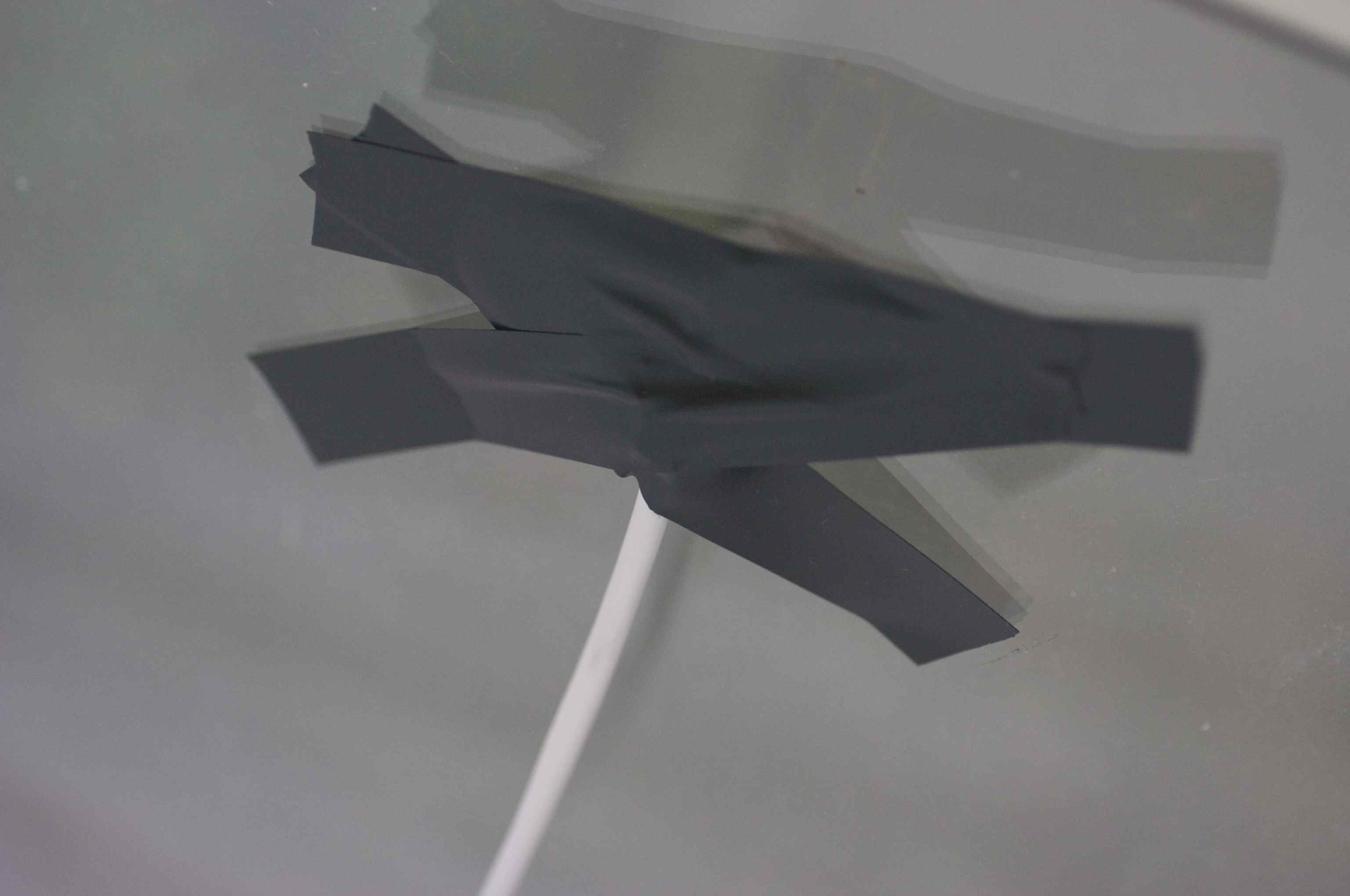

This CdS photocell is taped to a basement window facing out where it is relatively immune to indoor lighting. (more)

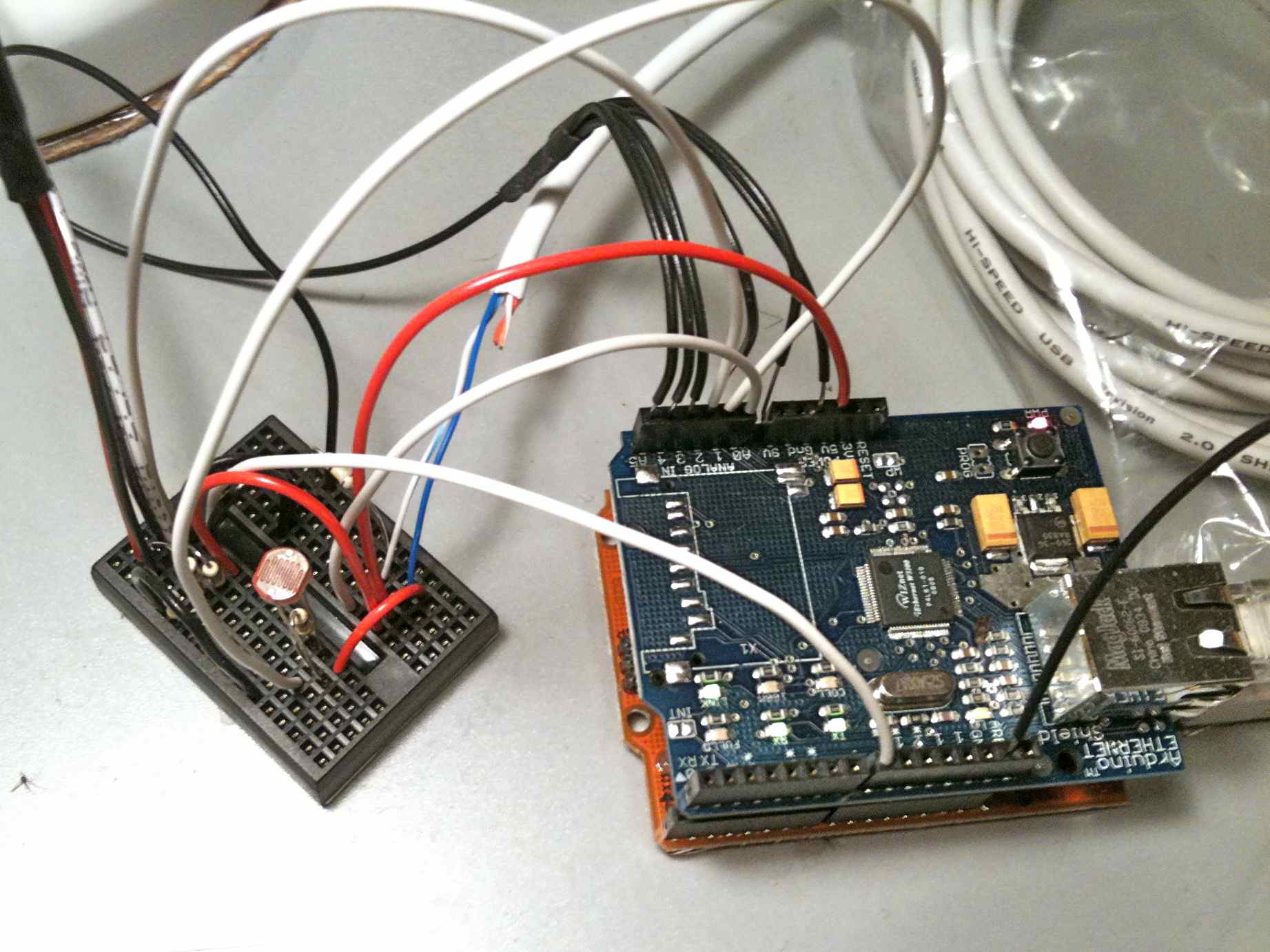

This CdS cell is located on the workbench next to the arduino running SensorServer. The desklamp shines directly on it so that will produce the highest values.

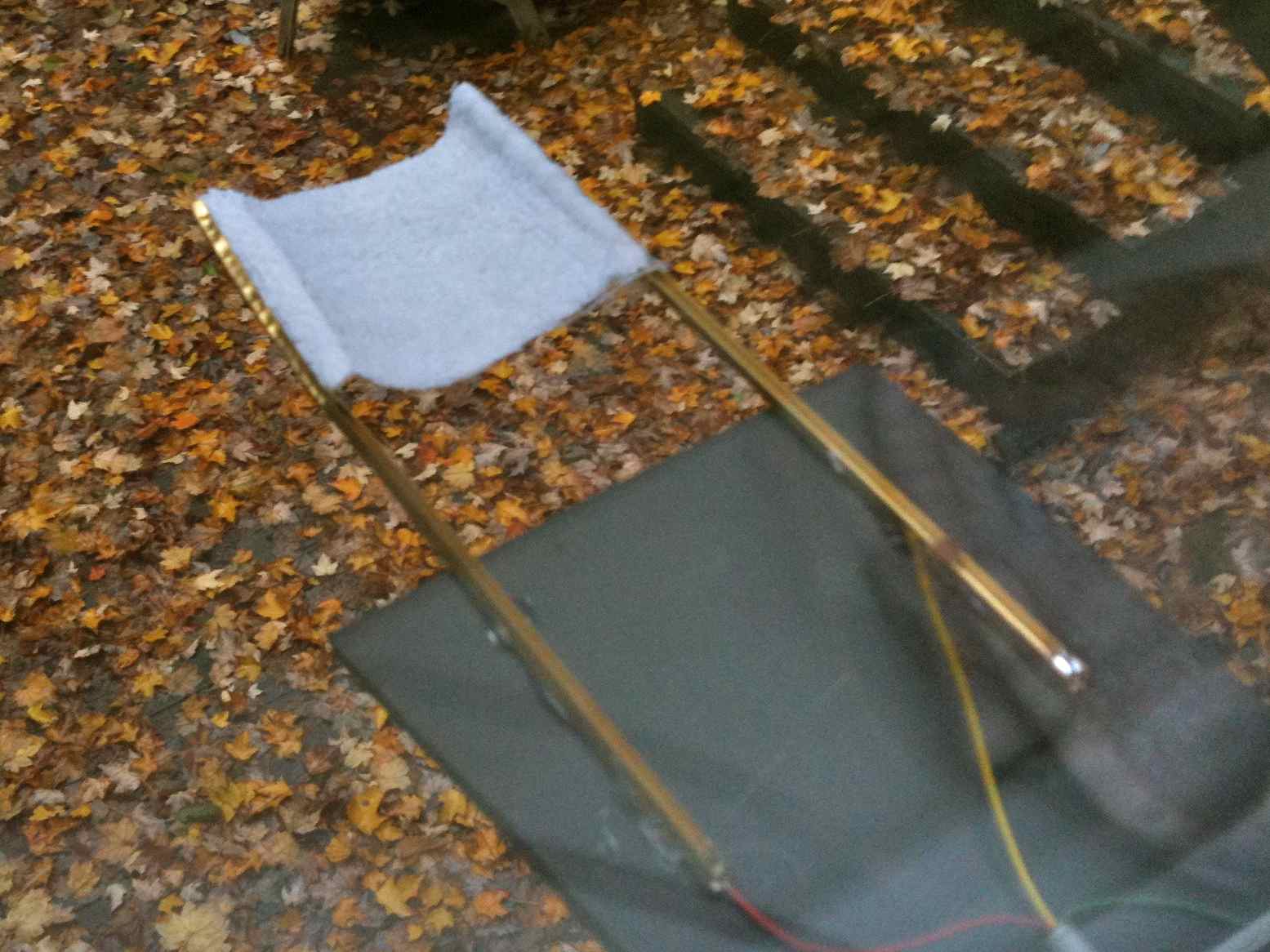

This moisture detector is constructed from fabric stretched between brass support which also serve as contacts. The conductance of the wet fabric pulls against a 100k resistor to ground.

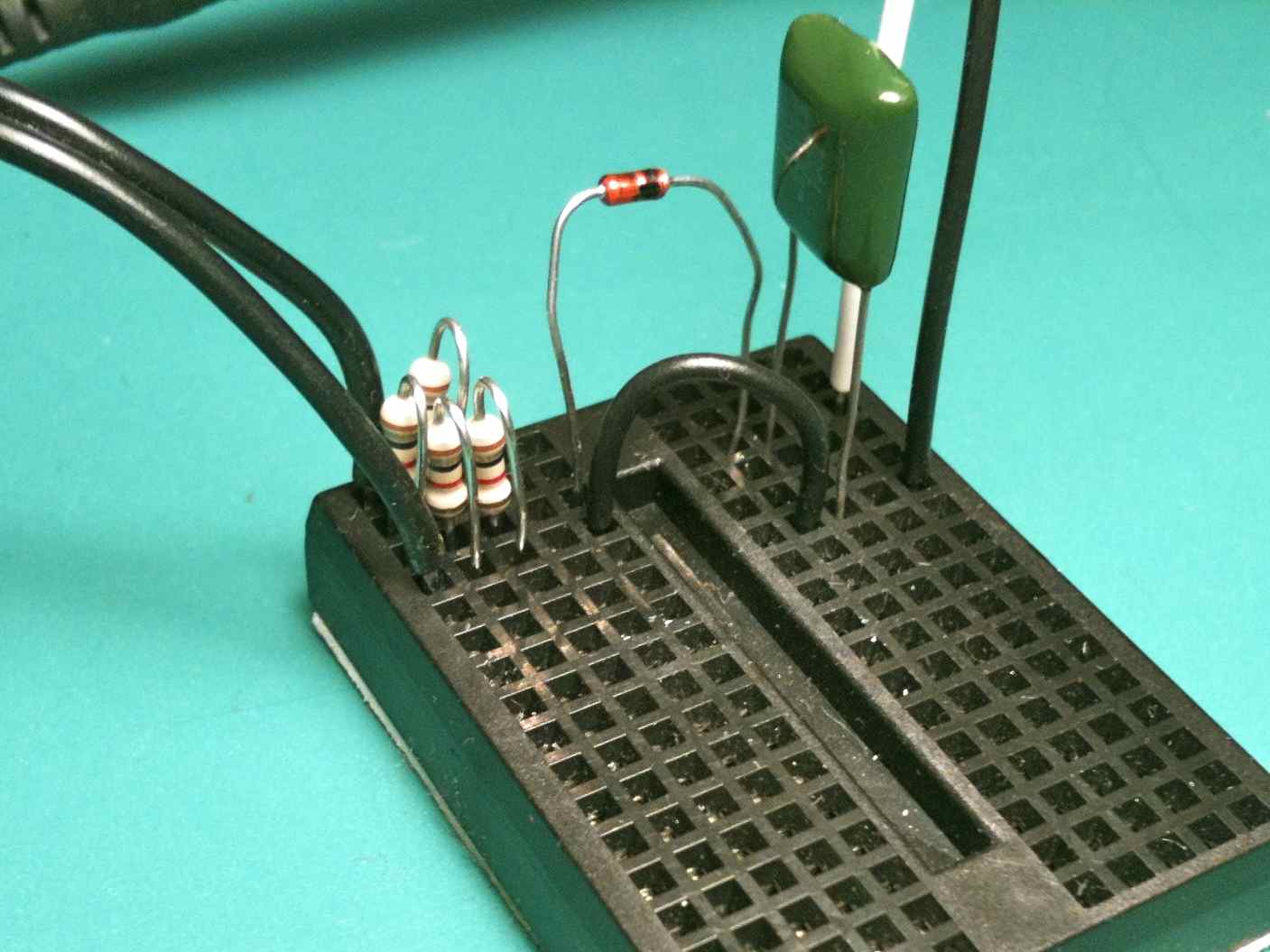

We're indirectly measuring the ac line voltage through a 12 volt ac wall transformer, a resistive voltage divider, half-wave rectifier and rc filter with time constant of about 1 second. (more)

Peak line voltage as a perecent of that expected from rms average voltage. Switching loads "flat top" the ac line.

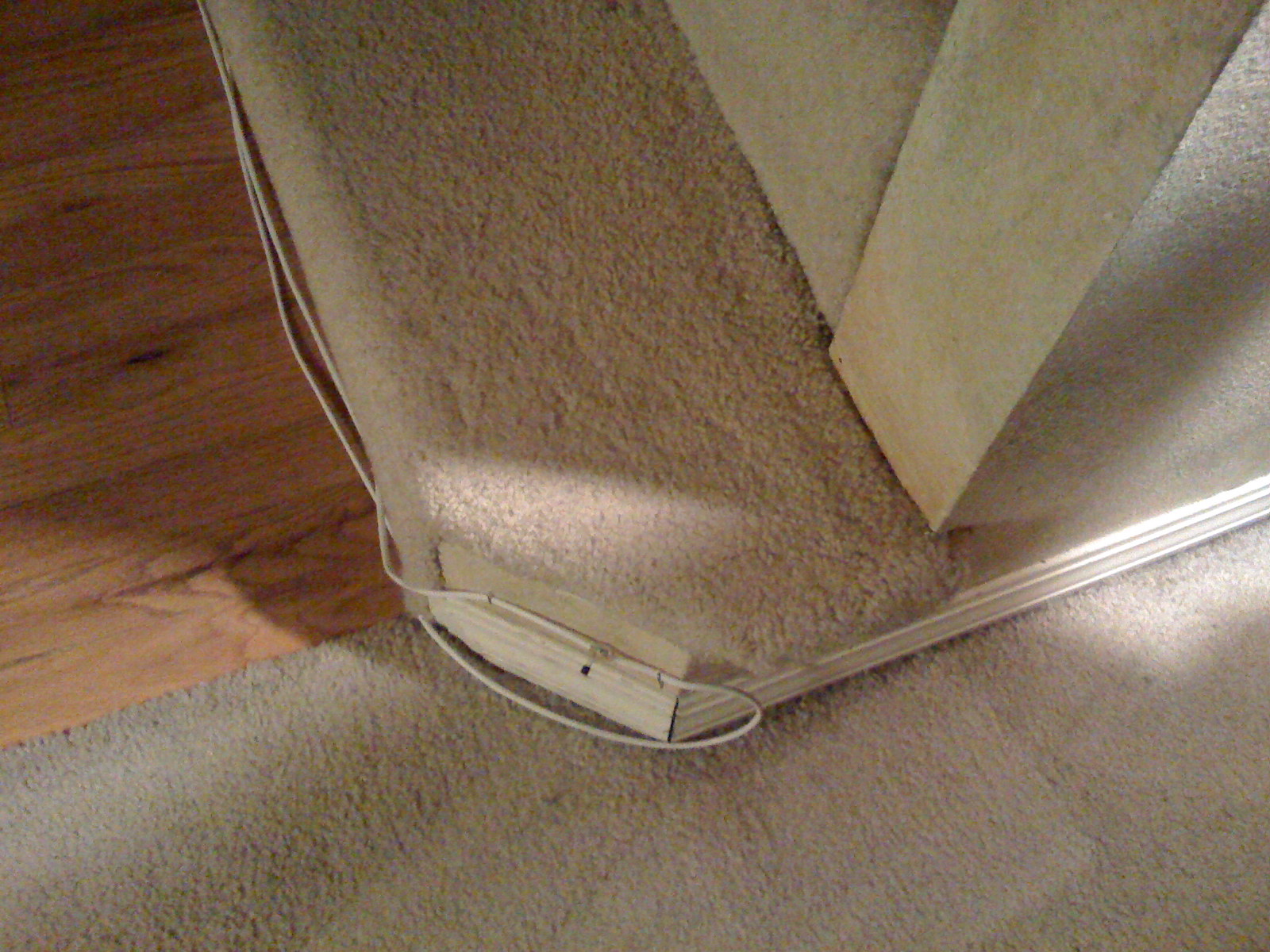

This unit is mounted on the first step of the stairs behind my favorite chair.

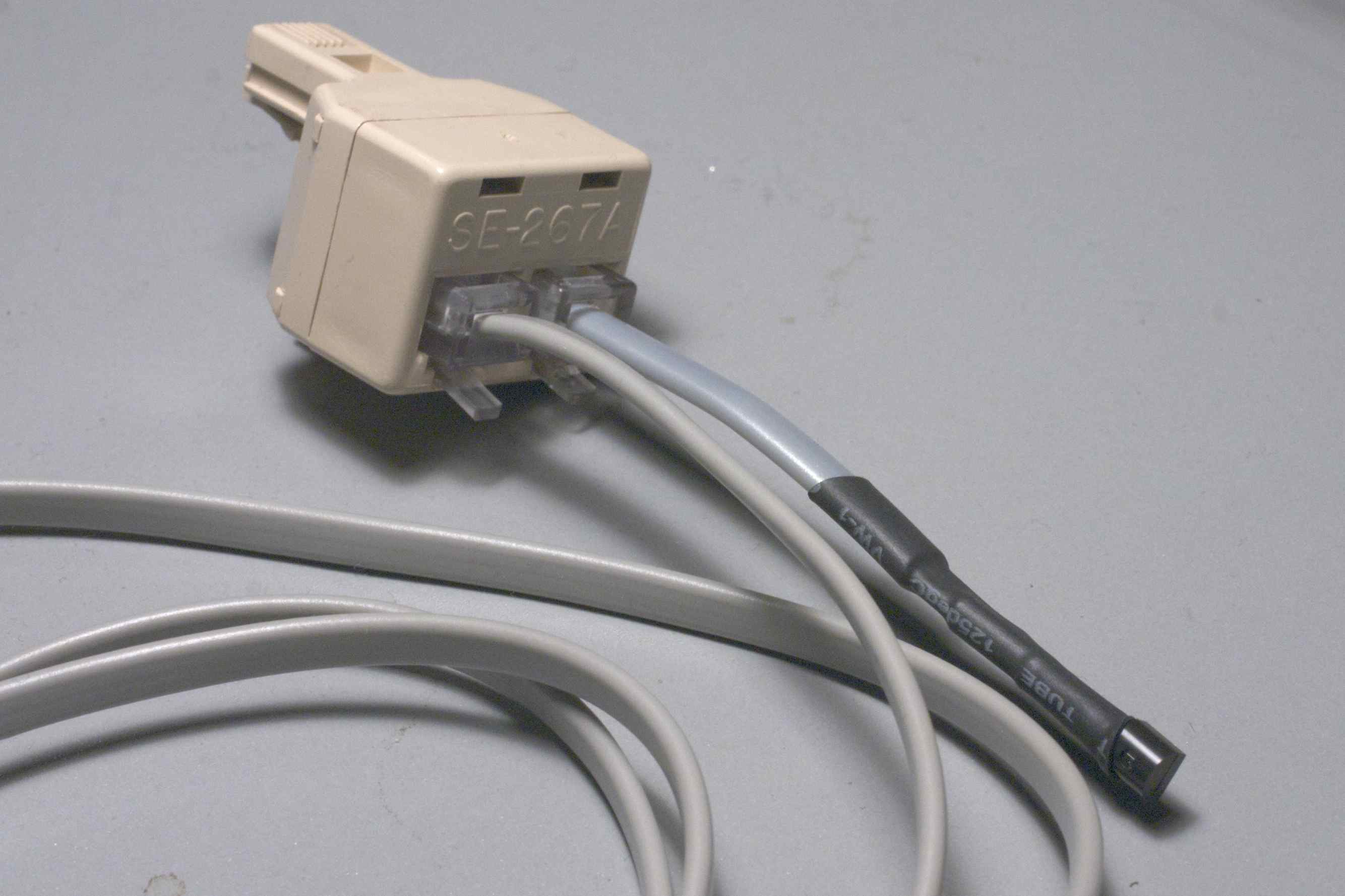

Sensor wired to exploit unused second pair in household phone sockets. The device currently sits on the bench near many others waiting to be deployed.

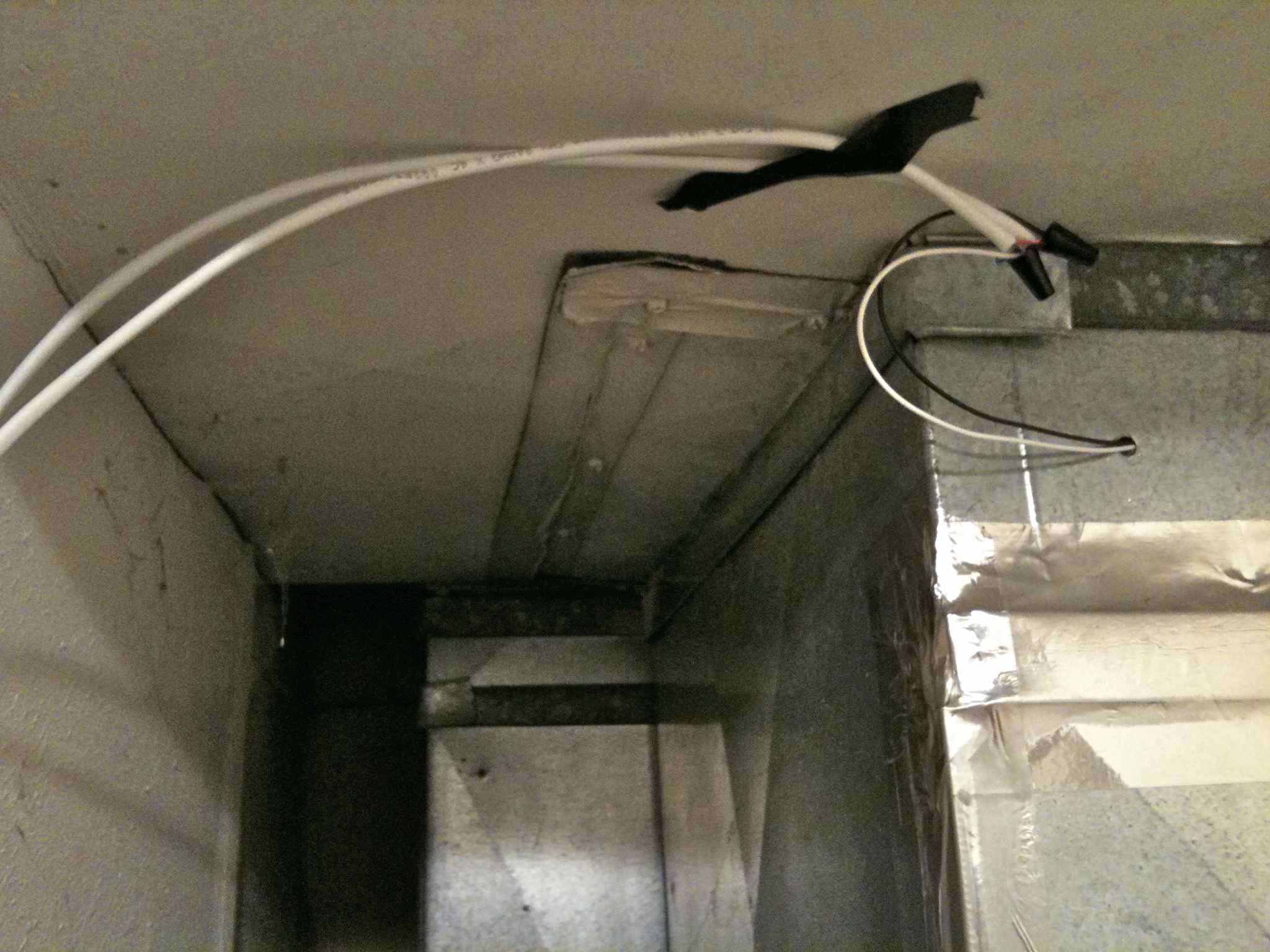

This sensor is inserted into the hot-air plenum of my gas furnace, above the evaporator of the air-conditioner. (more)

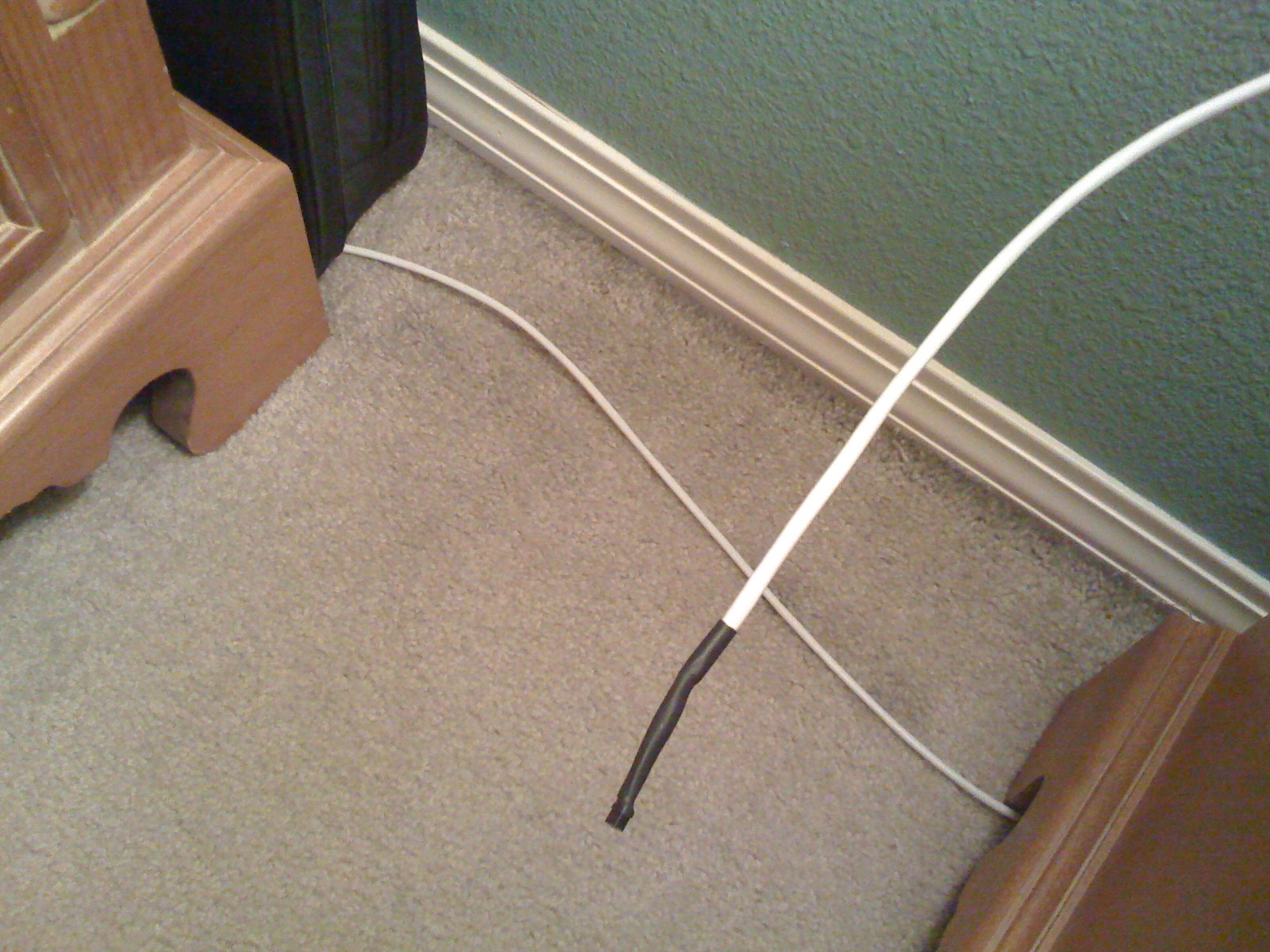

This sensor is mouned on the side of my bedroom nightstand. It is close to an outside wall.

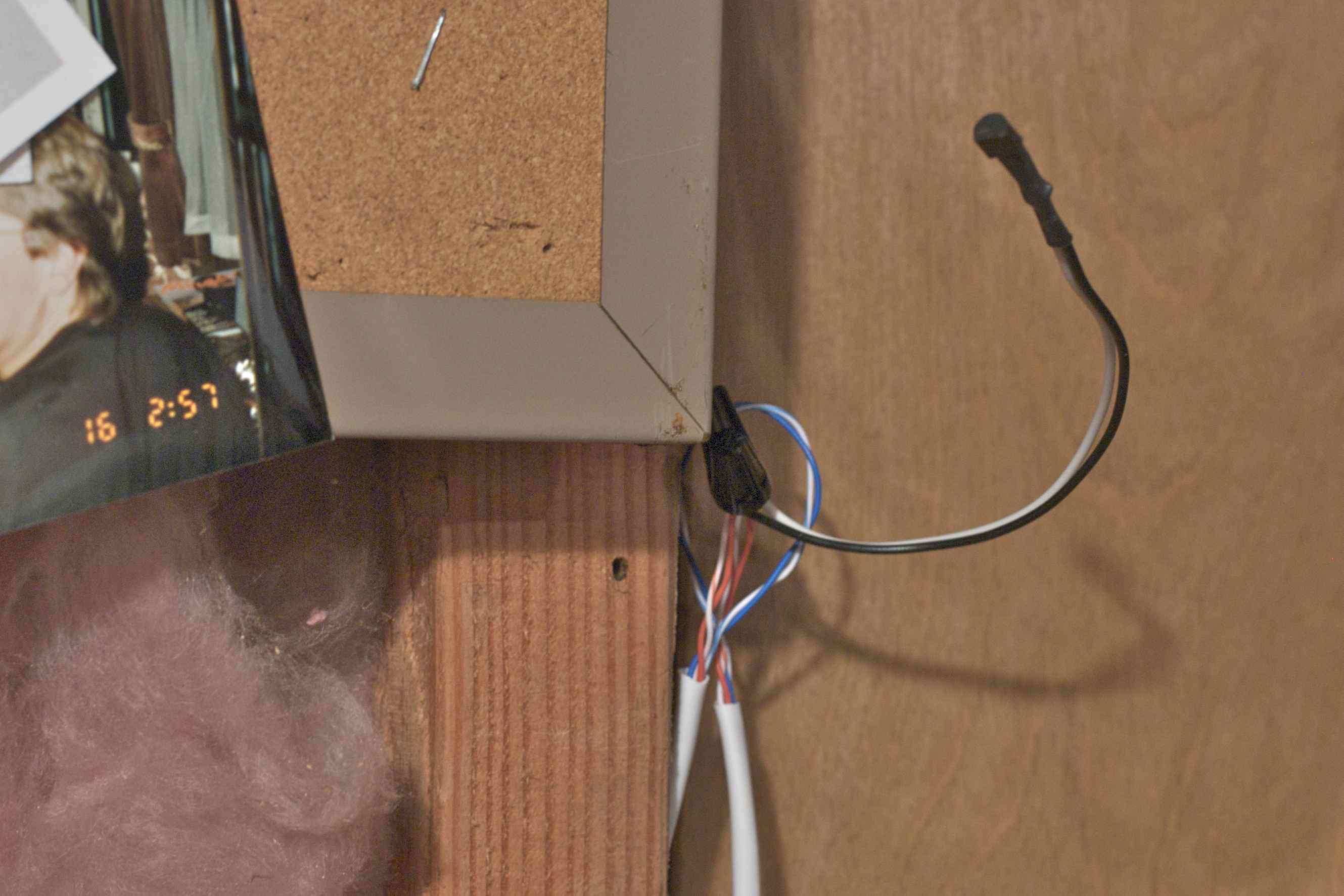

This insulated but otherwise unheated space is directly beneth a two-car garage.

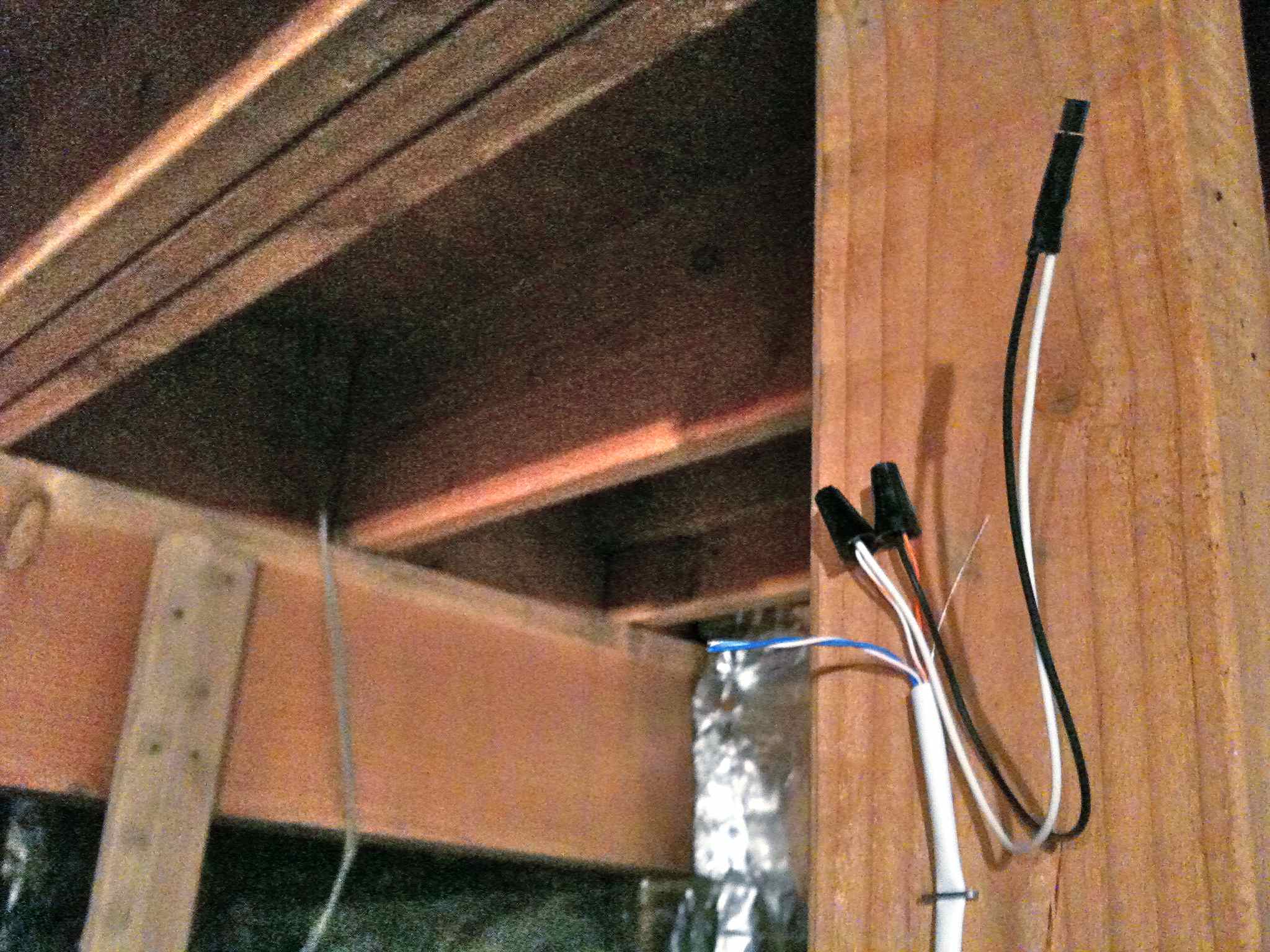

This sensor is in the crawl space underneath my daylight basement. It is exposed to the outside through a half dozen ground level vents.

Left rear in photo

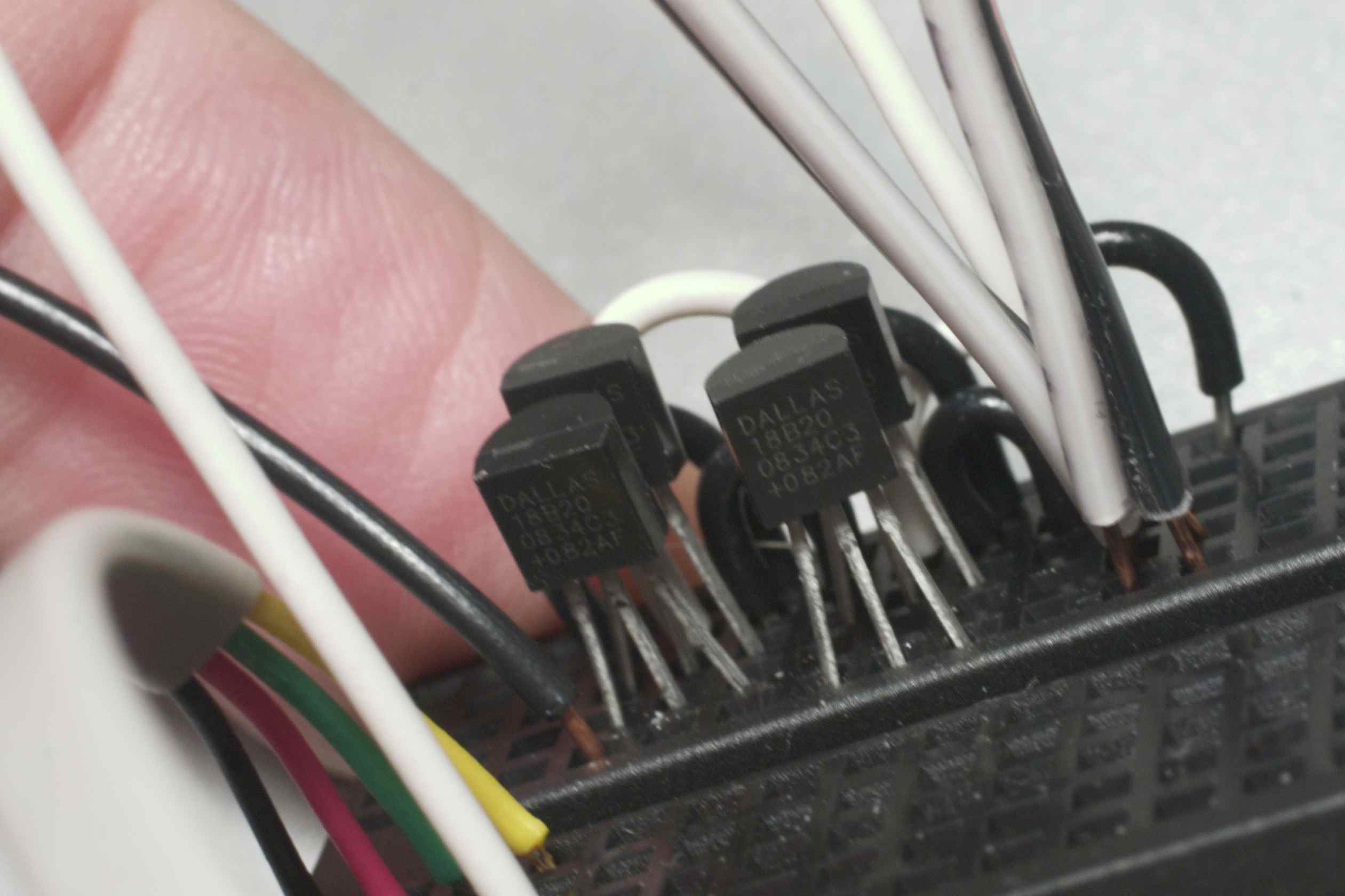

This is our first-ever one-wire device. It sits in the mini prototyping socket used by the usb version of the arduino software. Current placement has it on the bench, in the basement, near the window.

Merlin lives in the lower level where it can get a little chilly. We monitor his cage temperature to make sure he stays healthy.

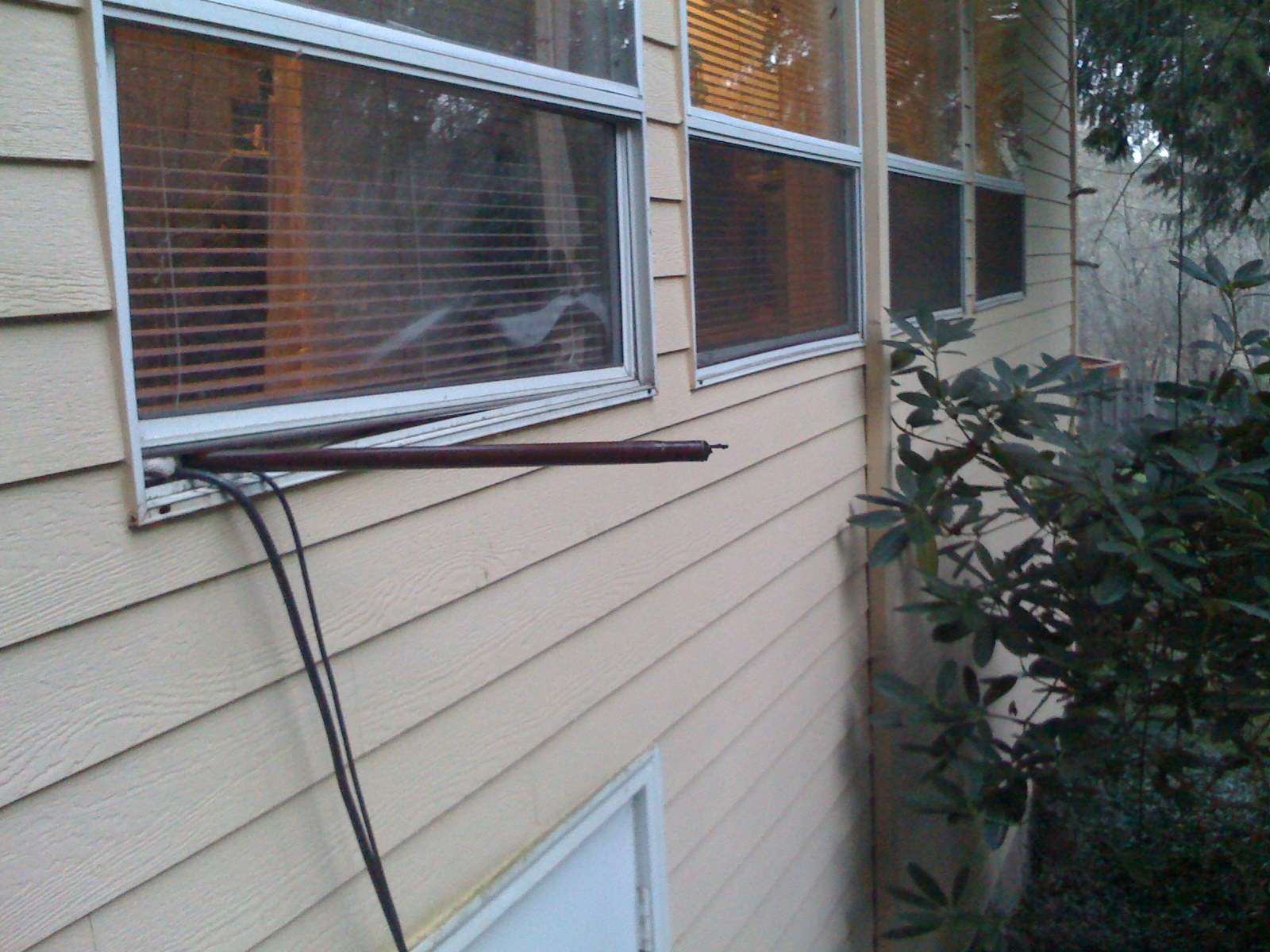

This unit is placed outside the basement window at the end of a steel tube that holds the sensor several feet away from the house.

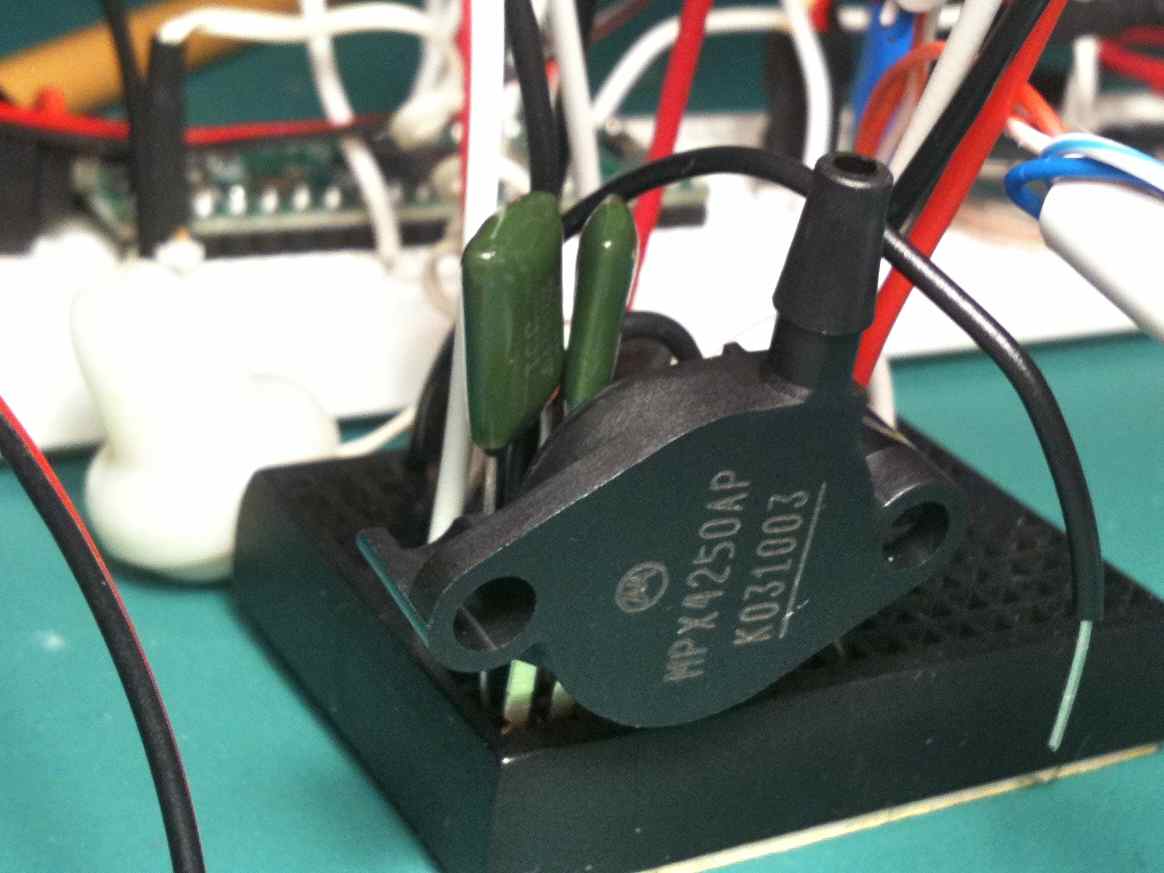

Strain gague absolute pressure sensor located in the shop.
