Question Pool -- Category T7B

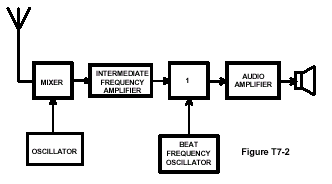

If Figure T7-2 is a diagram of a simple single-sideband receiver, what
type of circuit should be shown in block 1?
-
A.
- A high pass filter
-
B.
- A ratio detector
-
C.
- A low pass filter
-
D.
- A product detector
